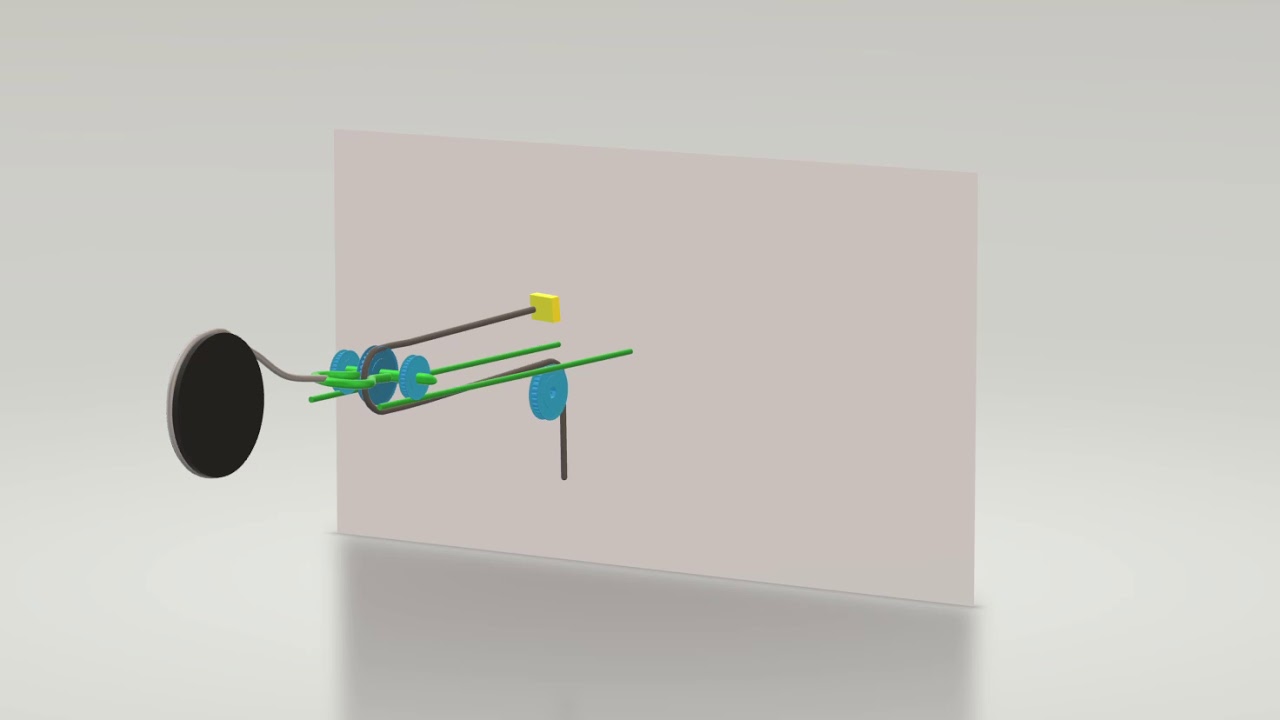

Yellow box = This is a fixed point. the end of the charger cable is made up here. Green pipe = I used 1" EMT conduit as a track for the "pulleys" to roll on.
Blue Pulleys = I used old dolly hubs for pulleys. I just ripped the tires off. Also harbor freight has cheap ones. About $6 ea. The large center pulley that the charger cable rolls on is slightly bigger for ease.
Large Black round thing = you can buy this at Harbor Freight, tractor supply, home depot, Lowes, Etc... it is a retractable spool for an air hose. I took the air hose off. The gray cable you see is
